合金一体成型电感

MDSA(车用)

FEATURES

?Shielded construction

?Capable of corresponding high frequency

?Low loss realized with low DCR

?High performance (Isat) realized by metal dust core

?Ultra low buzz noise, due to composite construction

?100% Lead(Pb)-Free and RoHS compliant

?AEC-Q200 qualified

?Operating temperature: -55 °C  to +155 °C


APPLICATION

?Headlamps, tail lamps and interior lighting

?HVAC

?Doors, window lift and seat control

?Audio subsystem

?Digital instrument cluster

?In-Vehicle Infotainment and navigation

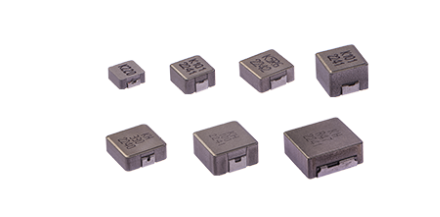

MDSA
产品清单
产品图系列号尺寸(mm)

电感值(μH)

温升电流(A)

饱和电流(A)

直流电阻(mΩ)文件下载

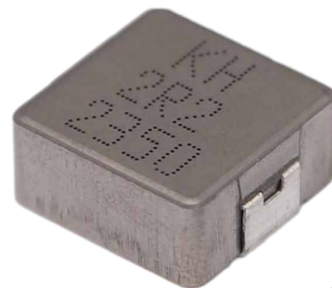

image.pngMDSA40204.45*4.1*1.80.1~10.02.4~15.92.1~26.02.91~165.0下载

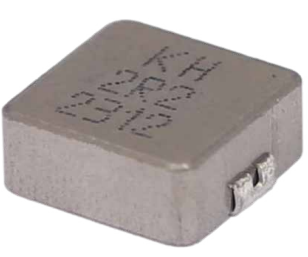

image.pngMDSA5030

5.7*5.2*2.8

0.2~15.02.8~13.92.1~19.83.6~140.1下载

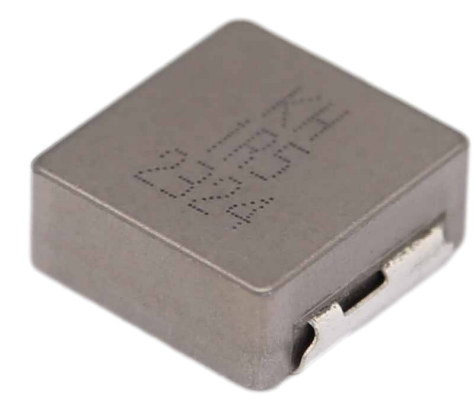

image.pngMDSA70307.1*6.6*2.80.47~47.01.5~17.81.9~19.63.4~318.3下载

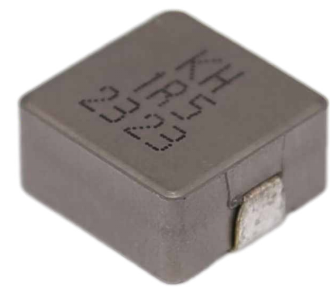

image.pngimage.pngMDSA70407.0*6.6*3.80.68~47.01.8~17.02.5~19.04.8~320下载
image.pngMDSA70507.3*6.6*4.8
1.0~47.02.5~16.82.0~16.05.62~275.1下载
image.pngMDSA104011.0*10.0*3.80.15~68.02.57~43.83.19~81.90.51~192.0下载
image.pngMDSA105011.0*10.0*4.80.36~47.04.4~33.84.0~51.70.82~106.3下载
image.pngMDSA135013.5*12.6*4.70.22~68.04.27~54.74.99~64.80.5~95.0下载
image.pngimage.pngimage.pngMDSA136013.5*12.6*5.70.36~47.05.0~59.96.6~69.80.66~76.2下载
image.pngMDSA136513.5*12.6*6.20.47~68.05.78~41.85.97~67.70.89~82.2下载
image.pngMDSA187017.9*16.9*6.70.47~82.06.3~59.97.8~109.80.72~69.1下载
